•5-Axis CNC Machine

Xmachine WM-100

A new age of creation

The next chapter of the Xmachine desktop platform — quieter spindle, larger envelope and a refined NCS controller, engineered for studios that need production-grade output from a desktop cell.

Request a quote Talk to an engineer

Authorised distributor · Ningbo, China

Xmachine WM-100 desktop 5-axis CNC machine
Full machine · next-gen desktop cell01 / 04

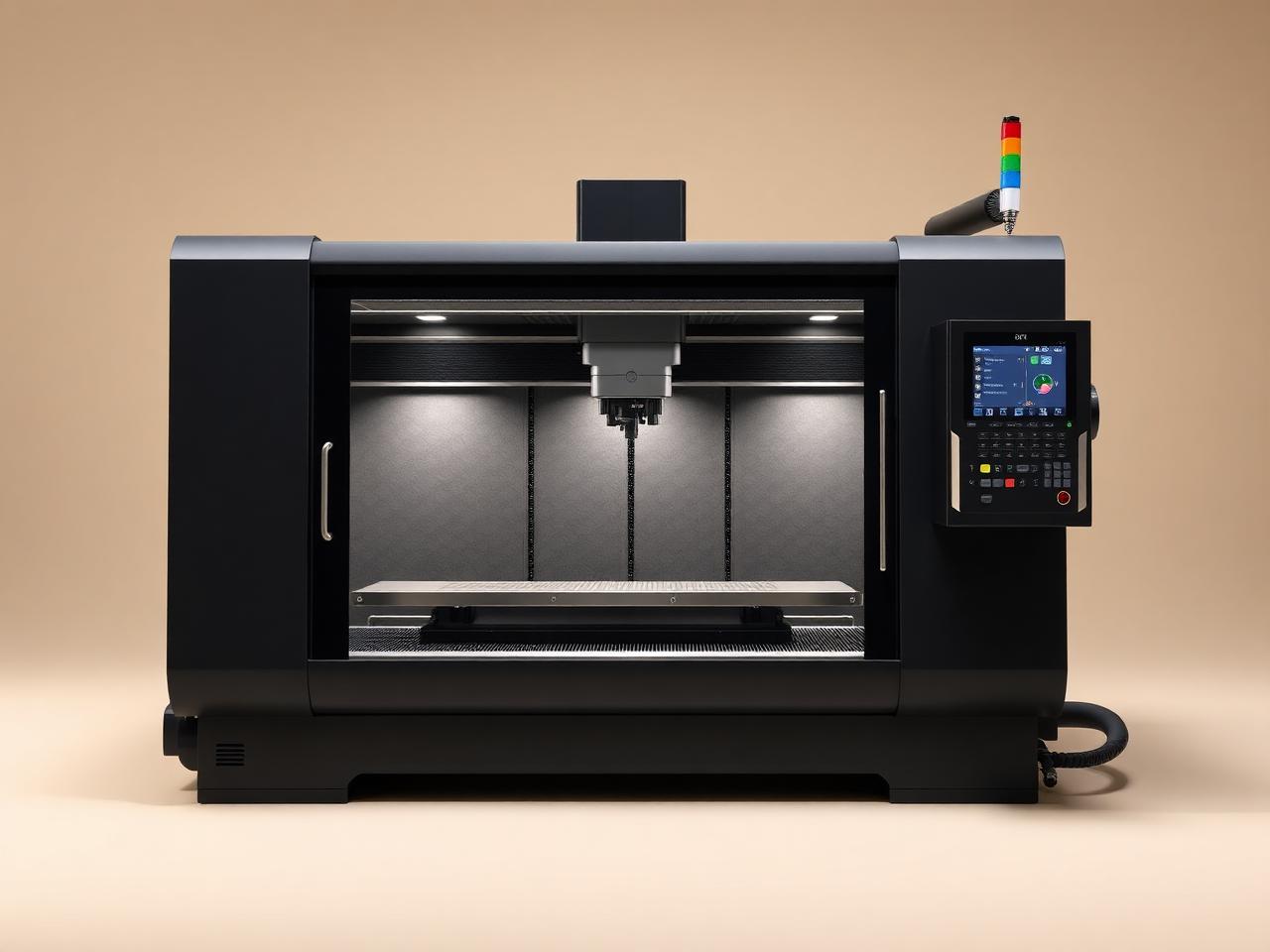

WM-100 angled three-quarter view
Three-quarter · enclosure and controller01 / 04

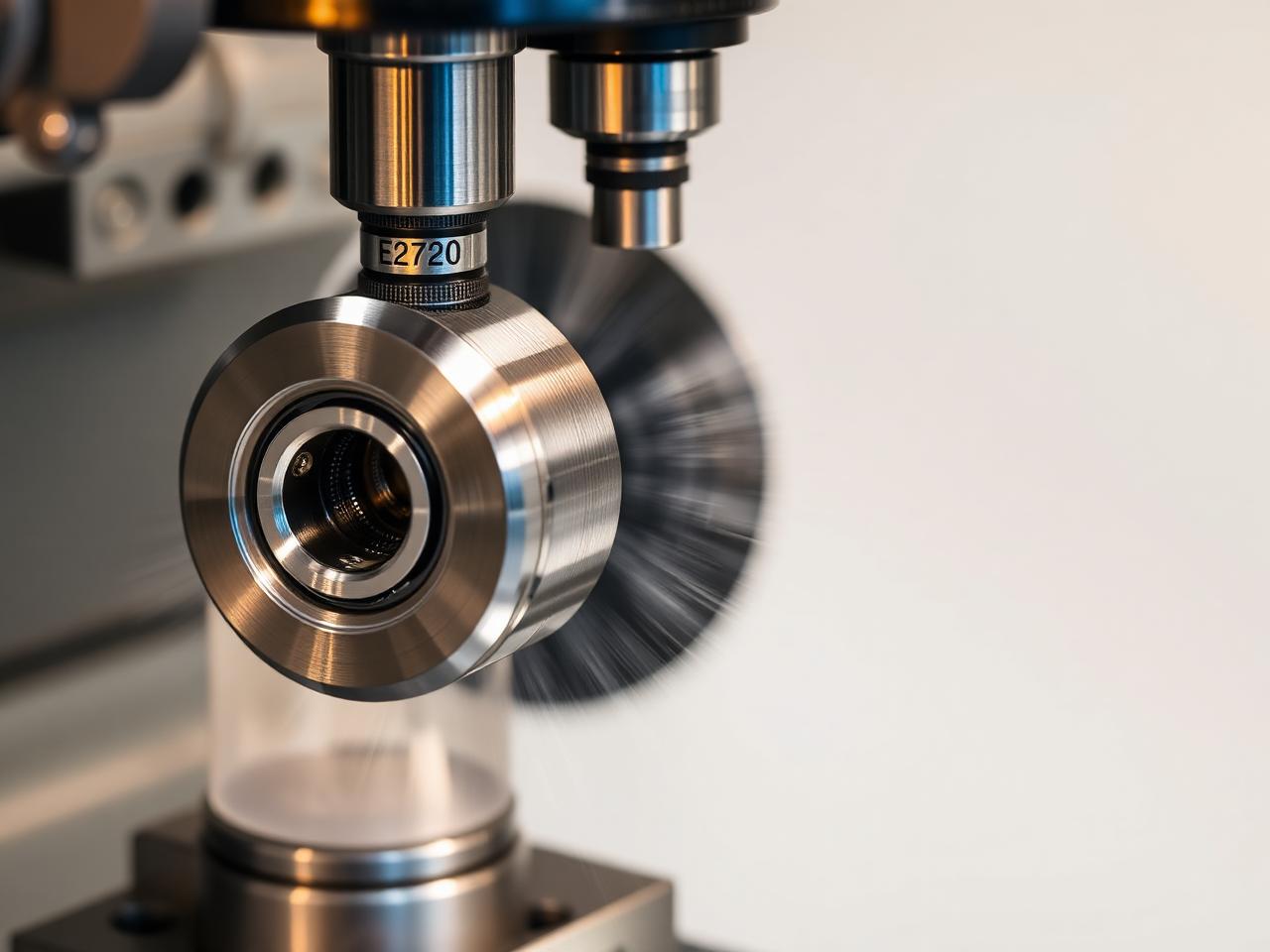

Close-up of WM-100 high-speed spindle
Spindle · 24,000 rpm ER2001 / 04

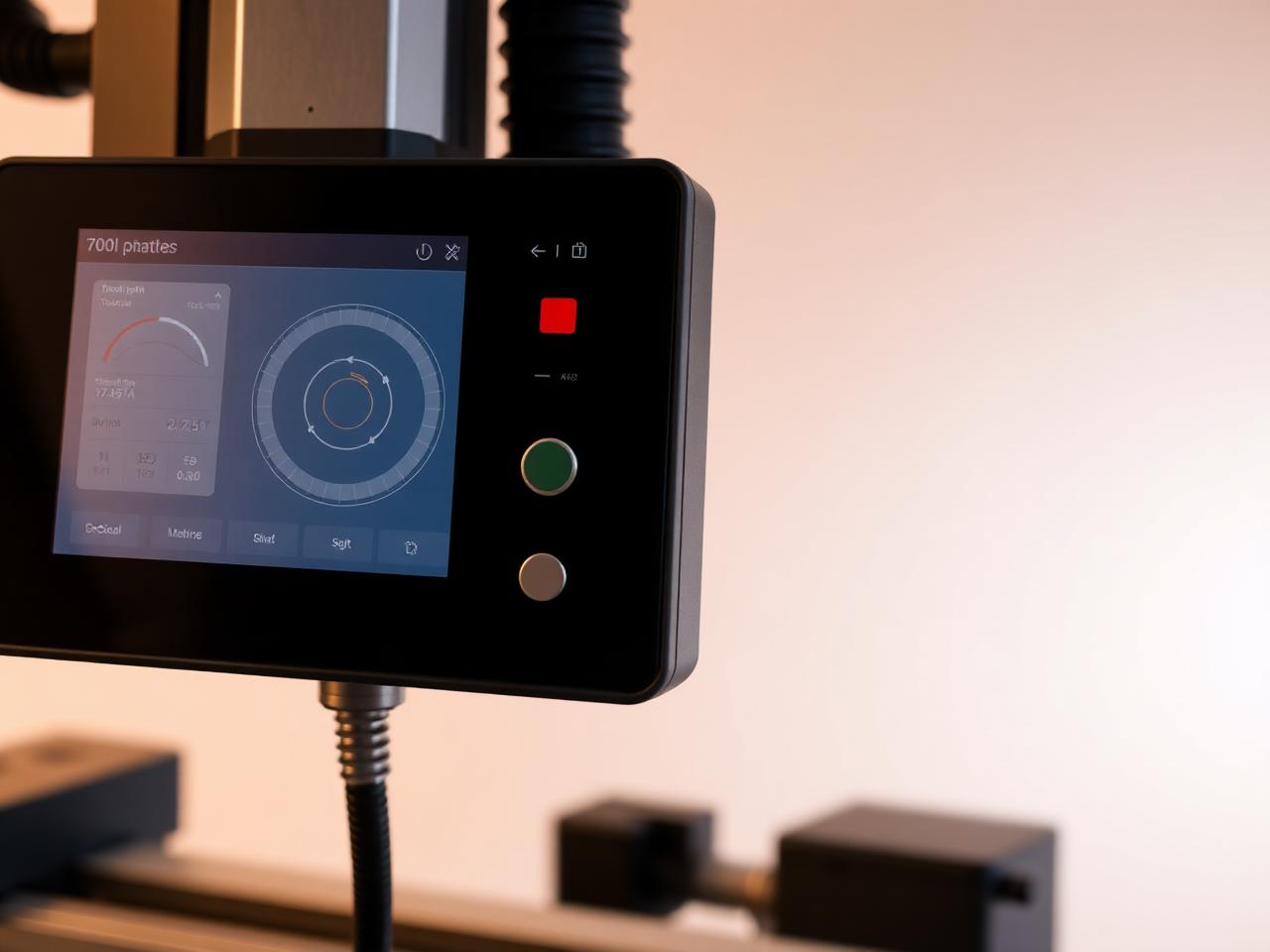

WM-100 touchscreen controller
10″ touchscreen · refined NCS01 / 04
01A perfect desktop CNC

Production-grade 5-axis. Desktop everything else.

WM-100 takes the proven Xmachine platform further — higher spindle speed, larger work envelope and a friendlier controller, without growing past a desktop footprint.

02At a glance
−35° ~ 120°
A-axis travel
360°
C-axis travel
Ø120 × 120 mm
Max. workpiece
24,000 rpm
Spindle speed
ER20
Spindle interface
≤ 5 µm
Positioning accuracy
200 / 150 / 120 mm
X / Y / Z travel
XMachine-NCS
Next-gen controller
03Engineered in depth

Built around the part — not the spec sheet.

01 · Larger envelope

Bigger parts, same footprint.

Ø120 mm swing and wider X travel open up housings, medical components and small-batch parts that previously needed a benchtop mill.

WM-100 full machine front view01 · Feature
02 · 24,000 rpm spindle

Higher rpm, smoother cut.

A quieter, better-cooled spindle holds torque from low rpm to 24,000 — surface finishes you don't need to post-process.

WM-100 high-speed spindle close-up02 · Feature
03 · Refined controller

Next-gen NCS, same workflow.

Updated 10″ touchscreen UI with smoother probing, MDI and conversational cycles — your CAM post stays the same.

WM-100 touchscreen controller close-up03 · Feature
04 · Production-ready

Thermals tuned for unattended runs.

Improved cooling and a sealed enclosure stabilise the work area for back-to-back small-batch cycles.

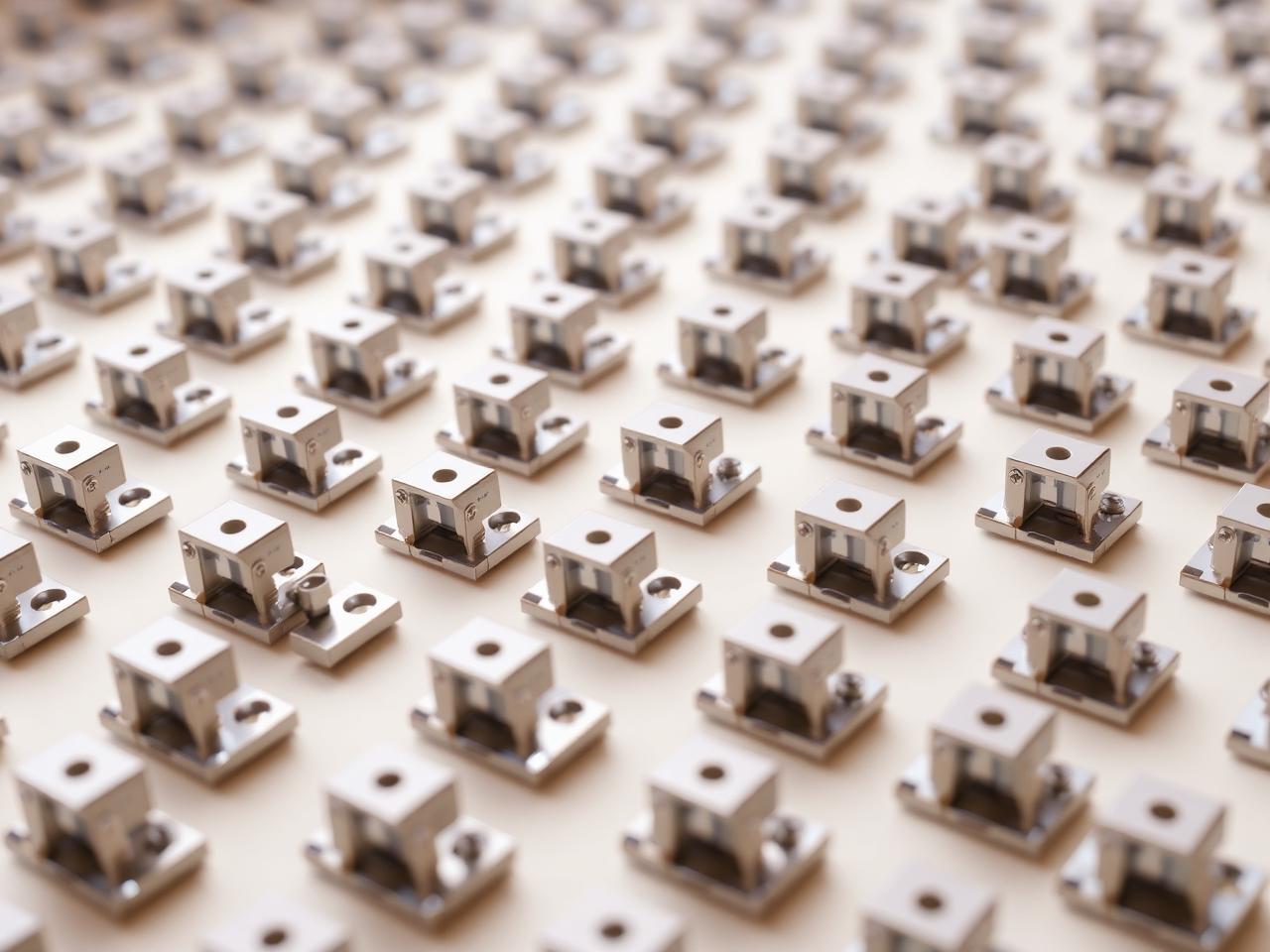

WM-100 small batch of machined parts04 · Feature
04Machining capabilities

One platform, four core operations — plus full 5-axis.

Stability and rigidity that lets a desktop machine cover engraving, milling, drilling and tapping without flexing.

EngravingMillingDrillingTapping3+2 PositioningSimultaneous 5-axis
05Material library

Cuts what your work demands.

From soft modelling stock to non-ferrous metals and natural stone — pick the material, pick the toolpath, press cycle start.

Aluminum
Copper
Brass
Titanium (light)
Steel (light cuts)
Wax
Acrylic
PC
Wood
Marble
06XMachine-NCS controller

A controller built for 5-axis from the ground up.

RTCP, 3+2 positioning, error compensation and high-speed look-ahead on a 10″ touchscreen.

RTCP

Tool-center-point control keeps the cutting edge on path through any A/C orientation.

3+2 positioning

Lock the rotary axes and machine in a tilted coordinate frame — quickly, accurately, repeatably.

Smart probing

Updated probing macros pick up part zero on cuboid or cylindrical stock without scripting.

Look-ahead control

High-speed trajectory planning holds feed rates on detailed toolpaths without sacrificing finish.

Conversational cycles

Built-in cycles for facing, pocketing, drilling and engraving — straight from the touchscreen.

Remote monitoring

Job status, alarms and overrides from a phone or laptop on the same network.

07Where it ships

Applications we've delivered with the Xmachine WM-100.

Real parts cut on the platform — across mechanical, motorsport, tooling, artistic and educational workflows.

Medical & dental01 · Application

Medical & dental

Implant abutments, surgical jigs and bespoke prosthetic components in titanium and PEEK.

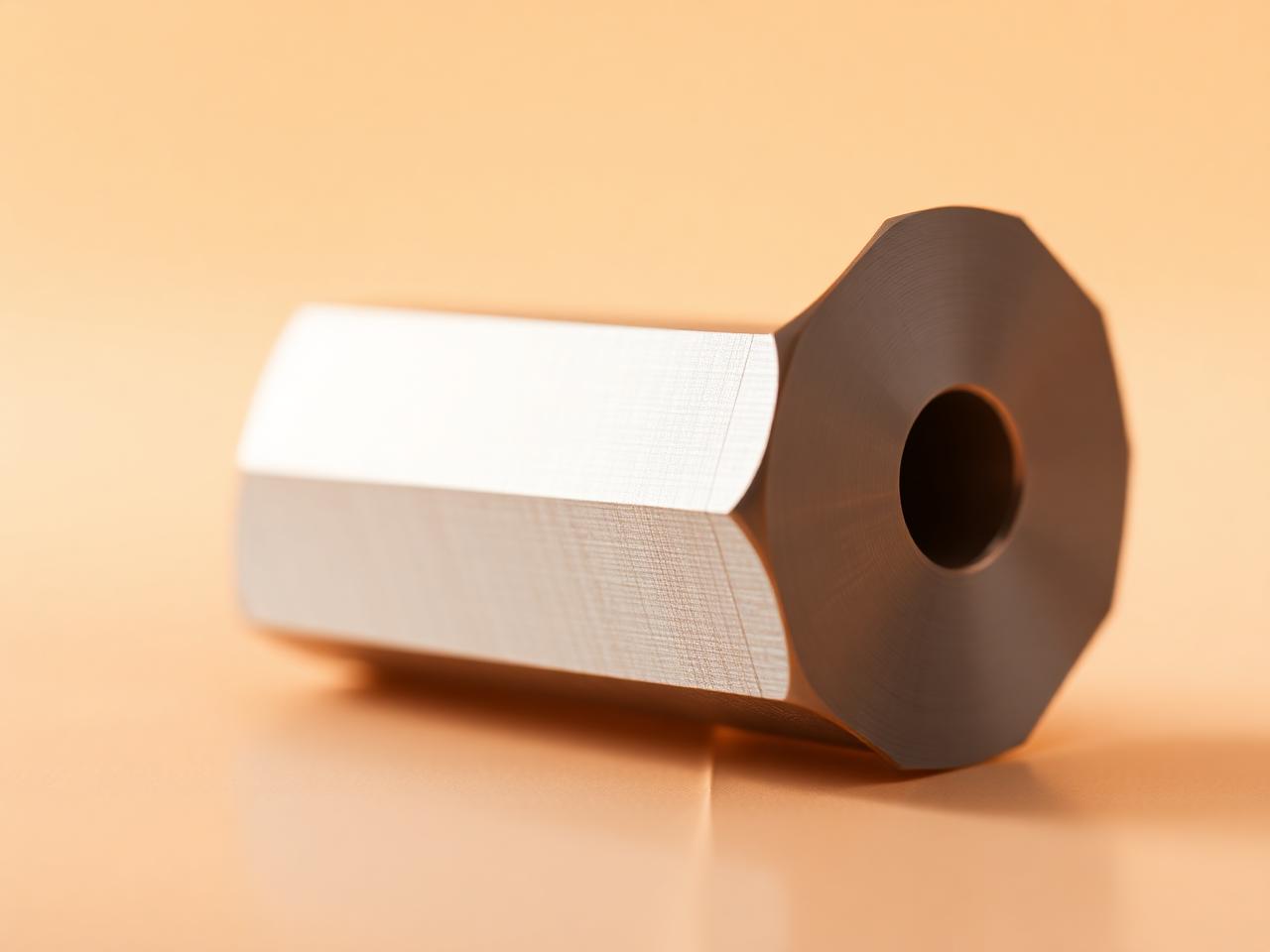

Electrodes & tooling02 · Application

Electrodes & tooling

Copper EDM electrodes, fixtures and small mold inserts machined complete in one setup.

Small-batch production03 · Application

Small-batch production

Repeatable runs of brackets, housings and connectors — desktop economics, production quality.

Education & research04 · Application

Education & research

A quiet, safe, capable teaching platform for university labs and technical institutes.

08Specifications

Technical data

X / Y / Z travel
200 / 150 / 120 mm
A-axis travel
−35° to 120°
C-axis travel
360° continuous
Max. workpiece
Ø120 × 120 mm
Spindle speed
24,000 rpm
Spindle interface
ER20 collet
Positioning accuracy
≤ 5 µm
Control system
XMachine-NCS (next-gen UI)
Power supply
220 V AC, single phase
Machine footprint
≈ 0.9 × 0.8 m

Specifications reflect the latest factory release and may be updated without notice. Contact us for the current datasheet.

·Typical applications

Where it fits

  • Small-batch production
  • R&D and design studios
  • Medical & dental components
  • Education & maker labs
  • Electrode and jig work
09Why buy through HANCHI

Same machine. Better hands behind it.

As an authorised Xmachine distributor, we pair every Xmachine WM-100 with local engineering support, faster spares and a real person you can call. Buying from a factory shouldn't feel like buying from a warehouse.

One-to-one engineer

A dedicated application engineer from quote to first cut — in English, Chinese and German.

Pre-shipment QC

Every machine is uncrated, calibrated and test-cut in our Ningbo shop before it leaves.

Spares in 72 h

Stocked consumables and critical spares from Ningbo, Frankfurt and Los Angeles hubs.

Onboarding & CAM help

Free remote operator training, post-processor setup and first-part program review.

10Request a quote

Get pricing, lead time and a sample-part plan for the Xmachine WM-100.

Tell us about the part you want to make. We'll come back within one business day with a configured quotation, indicative lead time and — if useful — a short proposal for a sample cut.

  • · Distributor pricing with transparent Incoterms
  • · CIF / DAP / EXW options worldwide
  • · Optional sample part cut before you commit
