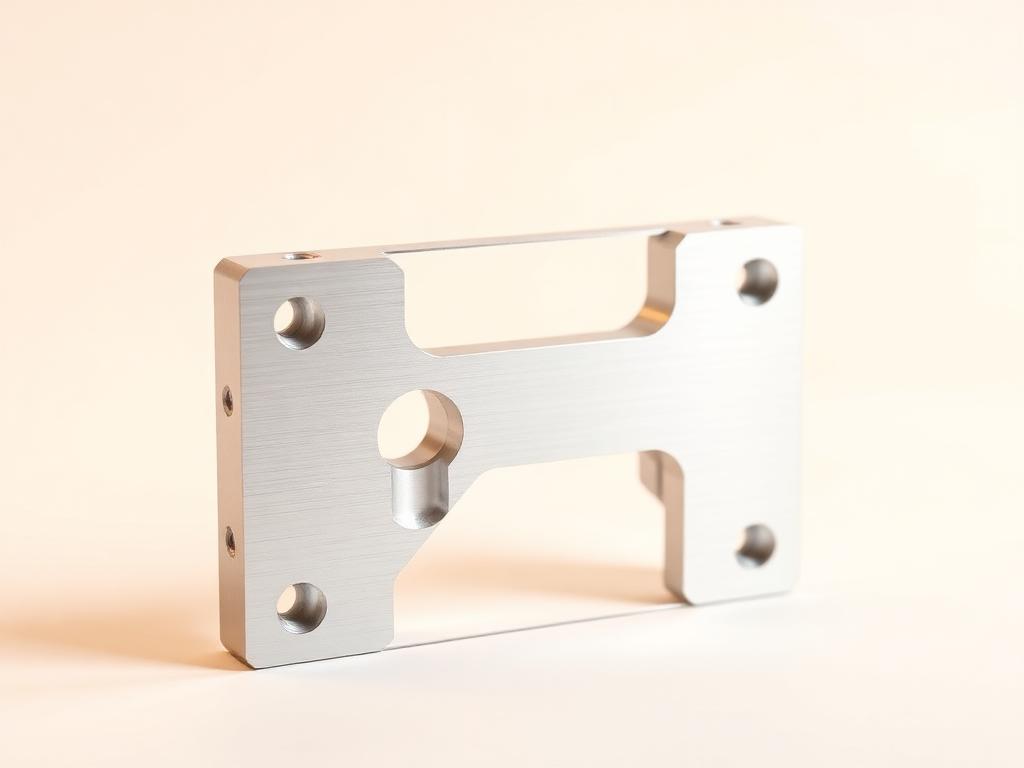

01 · ApplicationMechanical components
Brackets, housings, manifolds and prototypes that need real 5-axis form in metal.
•5-Axis CNC Machine
Xmachine XM-100
A new age of desktop creation
True simultaneous 5-axis machining in a desktop footprint — built for makers, R&D labs, design studios and small workshops.
Authorised distributor · Ningbo, China
Full machine · enclosed desktop cell01 / 04

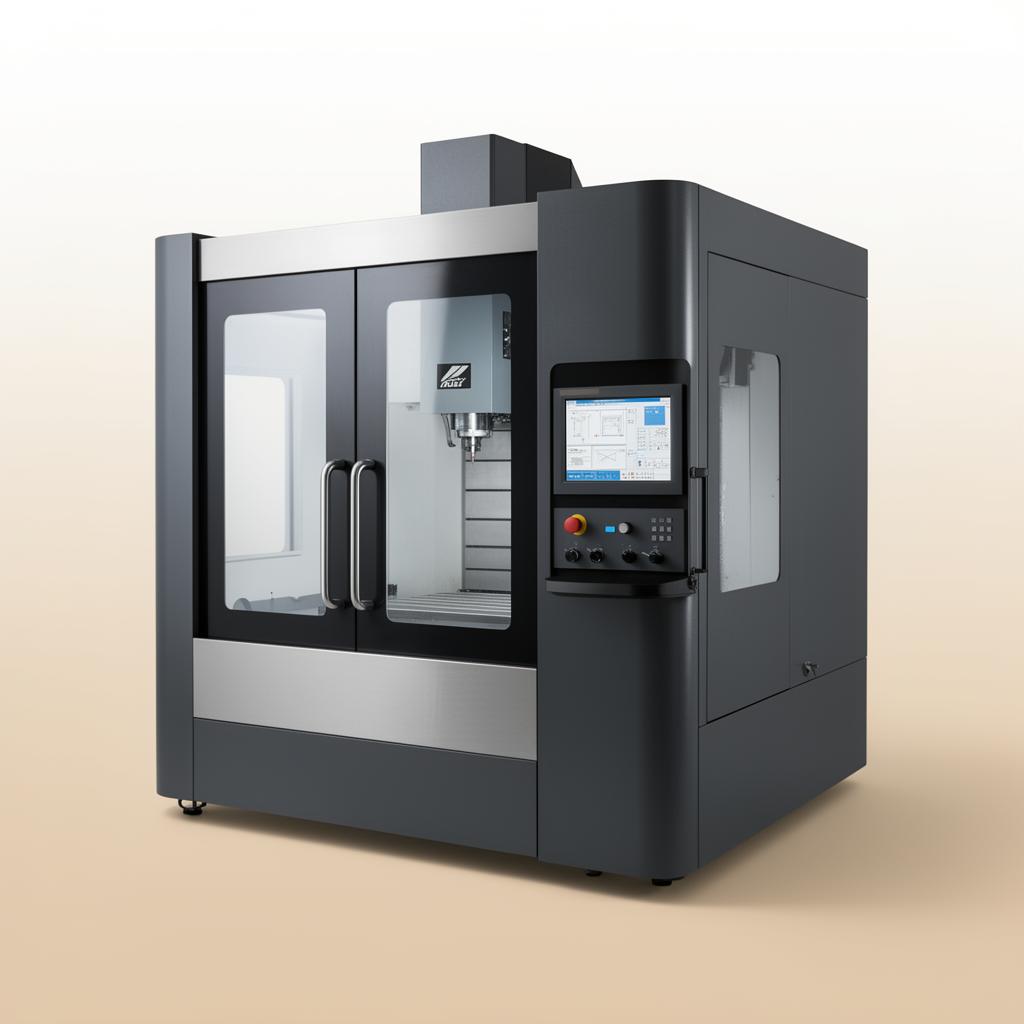

Three-quarter · glass cabin and control panel01 / 04

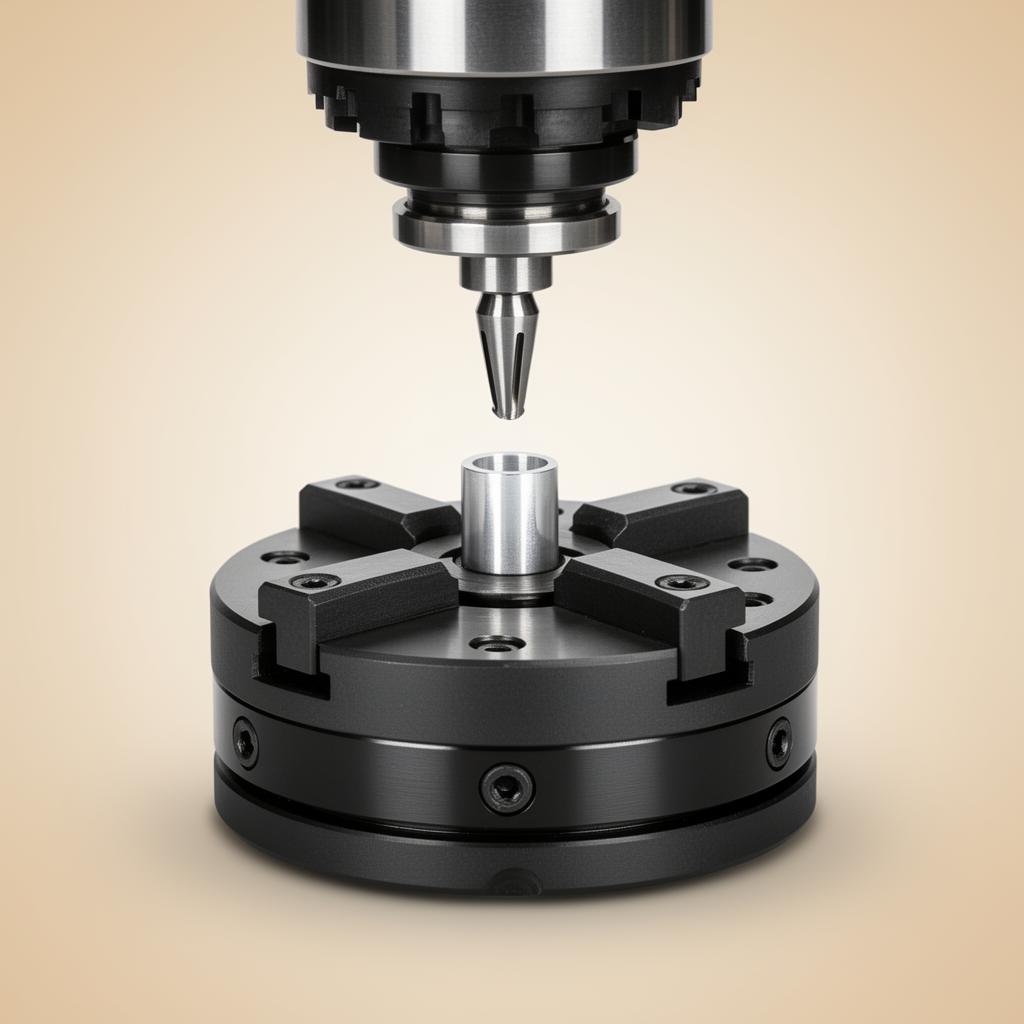

Spindle · self-centering vise and rotary table01 / 04

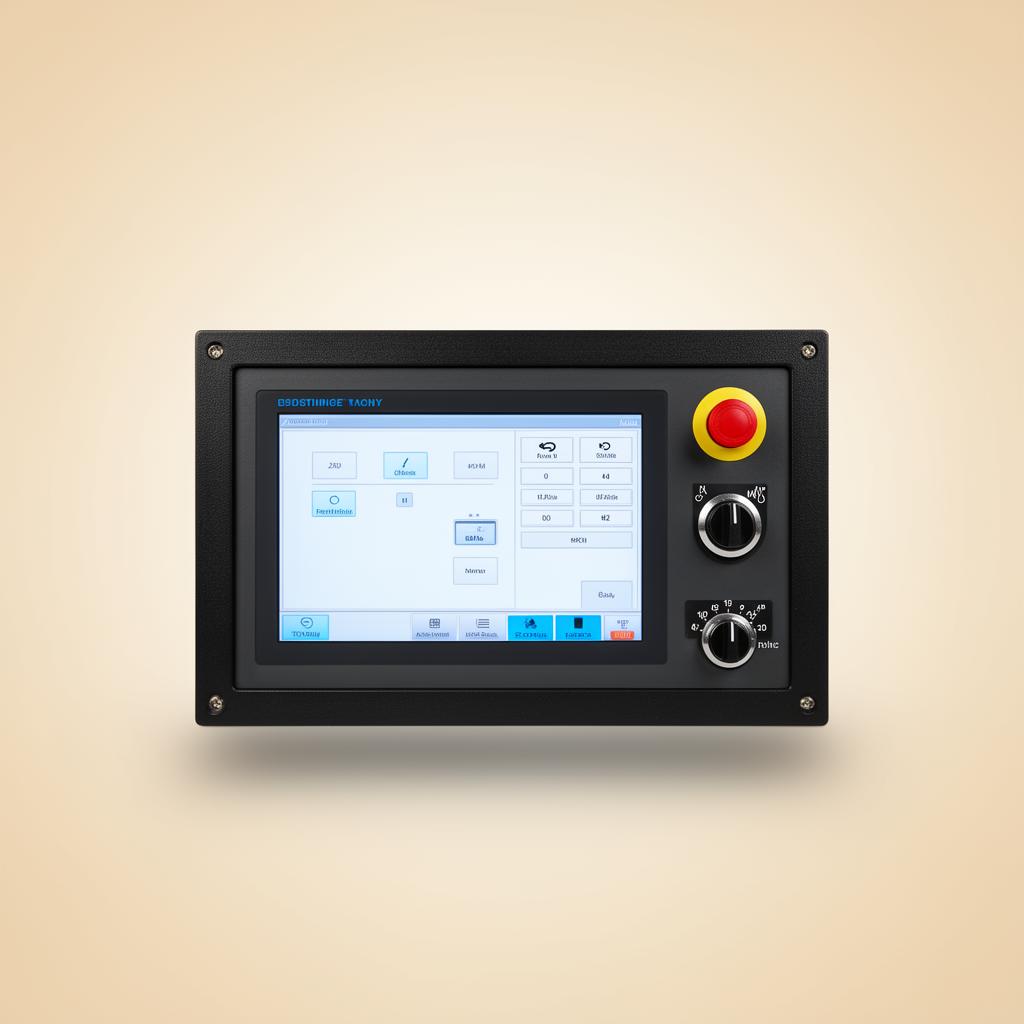

10″ touchscreen · XMachine-NCS controller01 / 04
01A perfect desktop CNC
A serious 5-axis machine, sized for your workspace.
Industrial motion platform, modern controller, desktop footprint — CAM file to finished part without leaving the room.
02At a glance
−30° ~ 110°
A-axis travel
360°
C-axis travel
100×100×100 mm
Max. workpiece
20,000 rpm
Spindle speed
2.2 kW
Rated power
≤ 5 µm
Tool-setter accuracy
156 / 203 / 125 mm
X / Y / Z travel
XMachine-NCS
Numerical control
03Engineered in depth
Built around the part — not the spec sheet.
01 · Simultaneous 5-axis
Geometry that 3-axis can't reach.
Swing-trunnion A/C table keeps the tool normal to complex surfaces — undercuts, blends and impeller forms in one setup.
01 · Feature02 · 20,000 rpm spindle
PMSM spindle, active cooling.
Permanent-magnet synchronous spindle with inductive encoder — smooth torque from low rpm to 20,000, stable thermals.
02 · Feature03 · Automated metrology
Wireless probing, hands-free zero.
Pick up part zero on cuboid or cylindrical stock and verify features automatically — no dial gauges, no guesswork.
03 · Feature04 · Self-calibration
Closed-loop accuracy in 5 minutes.
Sphere-probing maps geometric error across all five axes and feeds corrections back to the CNC — no engineer needed.
04 · Feature05 · Tool setting & ATC
Concealed 6-tool changer.
Integrated tool setter measures length and breakage every change. A pioneering concealed ATC supports up to six tools — roughing to finishing, hands-off.
05 · Feature06 · Mechanics
Premium components on every axis.
Linear guides + ground ball screws on X/Y/Z, harmonic reducer on A, direct-drive motor on C — accuracy you can repeat.
06 · Feature04Machining capabilities
One platform, four core operations — plus full 5-axis.
Stability and rigidity that lets a desktop machine cover engraving, milling, drilling and tapping without flexing.
EngravingMillingDrillingTapping3+2 PositioningSimultaneous 5-axis
05Material library
Cuts what your work demands.
From soft modelling stock to non-ferrous metals and natural stone — pick the material, pick the toolpath, press cycle start.
Aluminum
Copper
Brass
Steel (light cuts)
Wax
Acrylic
PC
Wood
Marble
Jade
Obsidian
06XMachine-NCS controller
A controller built for 5-axis from the ground up.
RTCP, 3+2 positioning, error compensation and high-speed look-ahead on a 10″ touchscreen.
RTCP
Tool-center-point control keeps the cutting edge on path through any A/C orientation.
3+2 positioning
Lock the rotary axes and machine in a tilted coordinate frame — quickly, accurately, repeatably.
Error compensation
Six-DOF compensation across all motion axes feeds calibrated corrections into every move.
Look-ahead control
High-speed trajectory planning keeps feed rates up on detailed toolpaths without sacrificing surface finish.
Flexible interpolation
Smooth motion between linear, circular and NURBS segments — clean finishes straight off the machine.
10″ touchscreen UI
An intuitive touch interface for jogging, probing, MDI, file management and live override.
07Where it ships
Applications we've delivered with the Xmachine XM-100.
Real parts cut on the platform — across mechanical, motorsport, tooling, artistic and educational workflows.
01 · Application

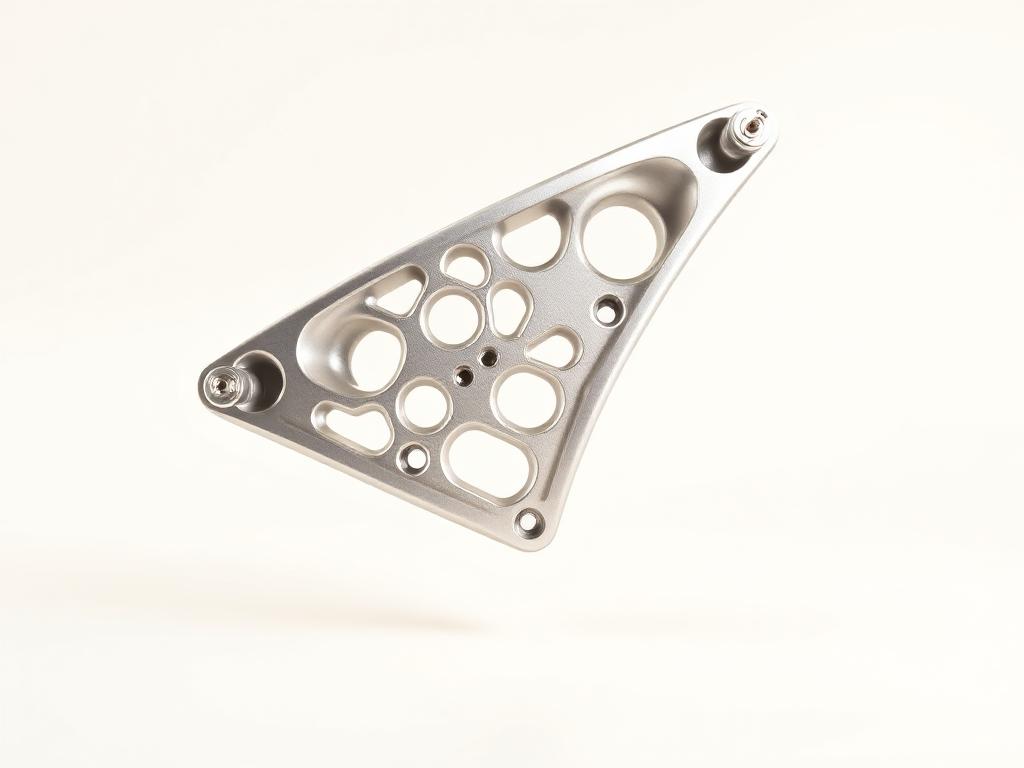

02 · ApplicationCompetition designs
Robotics, formula-student and motorsport teams cutting one-off precision parts in-house.

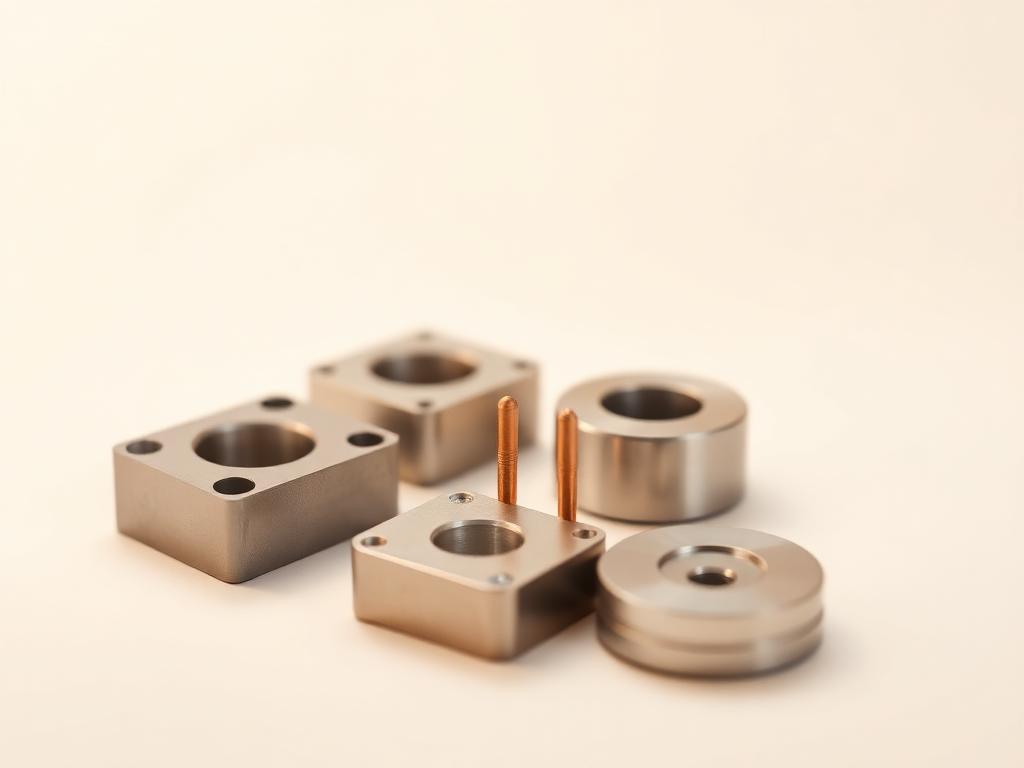

03 · ApplicationCustom tooling
Fixtures, electrodes, dies and small mold inserts machined complete in a single setup.

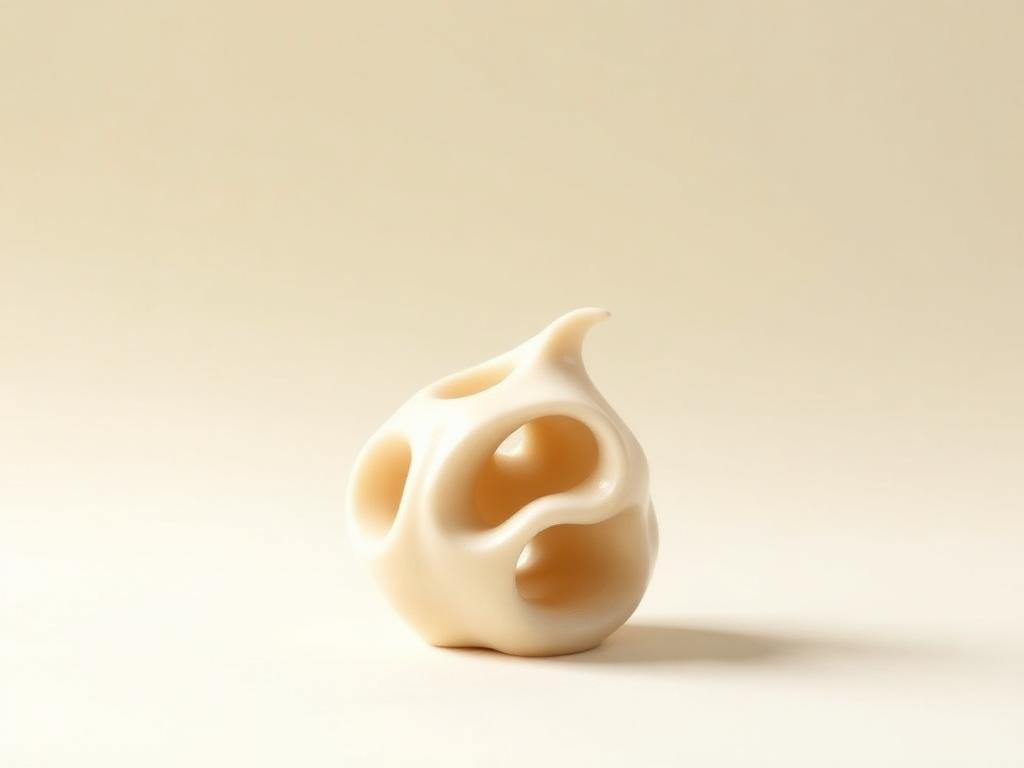

04 · ApplicationArtistic projects
Sculptural pieces, signage and architectural details in wax, wood, stone and metal.

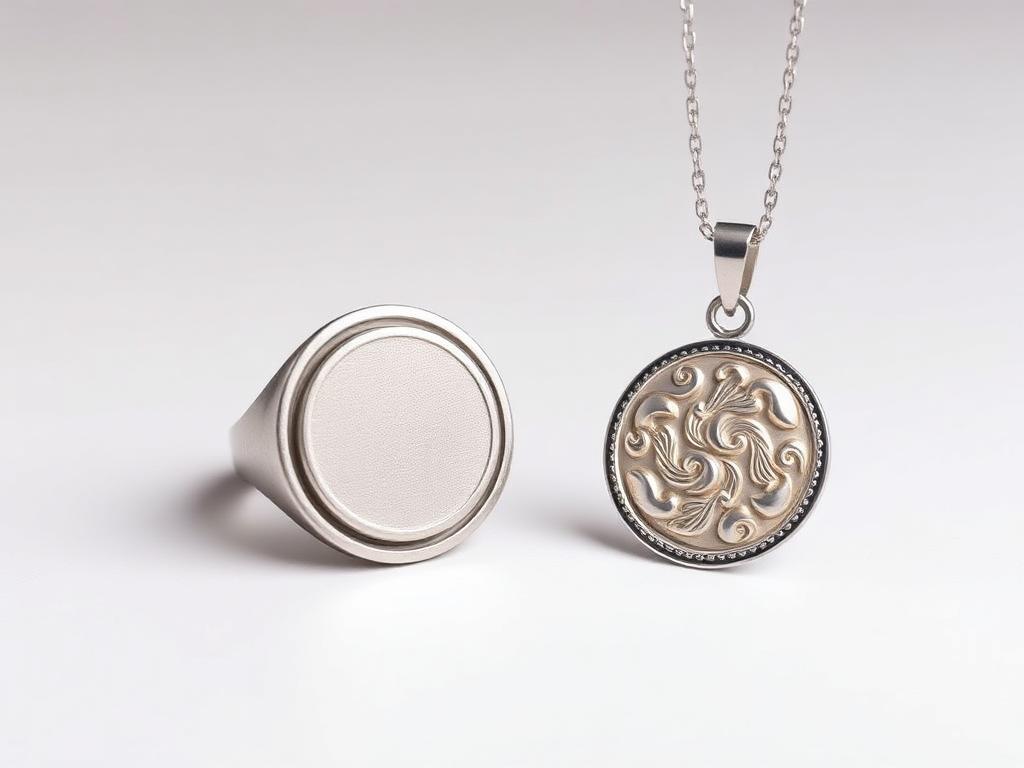

05 · ApplicationJewelry & crafts
High-detail rings, pendants and wax masters with surface quality you can polish, not re-finish.

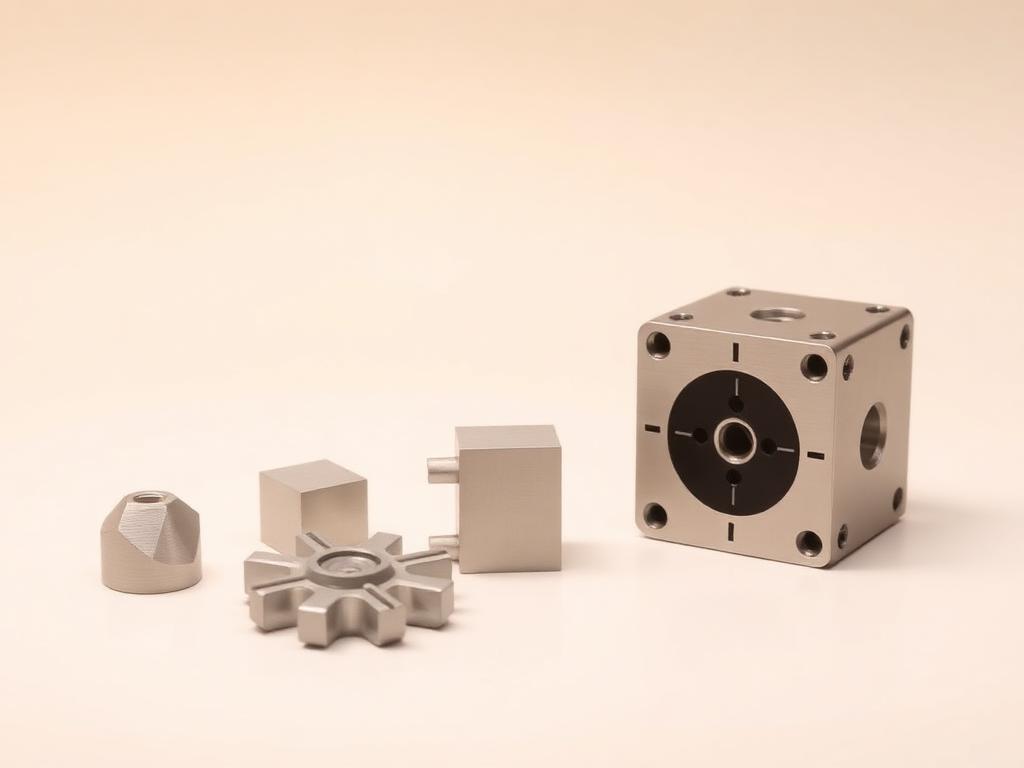

06 · ApplicationEducation & research
A capable, safe, quiet teaching platform for university labs and technical institutes.
08Specifications
Technical data
- X / Y / Z travel
- 156 / 203 / 125 mm
- A-axis travel
- −30° to 110°
- C-axis travel
- 360° continuous
- Max. workpiece
- 100 × 100 × 100 mm
- Spindle speed
- 20,000 rpm
- Rated spindle power
- 2.2 kW
- Tool-setter accuracy
- ≤ 5 µm
- Control system
- XMachine-NCS
- Power supply
- 220 V AC, single phase
- Machine footprint
- ≈ 0.9 × 0.8 m
Specifications reflect the latest factory release and may be updated without notice. Contact us for the current datasheet.
·Typical applications
Where it fits
- Prototype machining
- Jewelry & dental
- Aerospace samples
- Education & training
- Mold & electrode work
09Why buy through HANCHI
Same machine. Better hands behind it.
As an authorised Xmachine distributor, we pair every Xmachine XM-100 with local engineering support, faster spares and a real person you can call. Buying from a factory shouldn't feel like buying from a warehouse.
One-to-one engineer
A dedicated application engineer from quote to first cut — in English, Chinese and German.
Pre-shipment QC
Every machine is uncrated, calibrated and test-cut in our Ningbo shop before it leaves.
Spares in 72 h
Stocked consumables and critical spares from Ningbo, Frankfurt and Los Angeles hubs.
Onboarding & CAM help
Free remote operator training, post-processor setup and first-part program review.
10Request a quote
Get pricing, lead time and a sample-part plan for the Xmachine XM-100.
Tell us about the part you want to make. We'll come back within one business day with a configured quotation, indicative lead time and — if useful — a short proposal for a sample cut.
- · Distributor pricing with transparent Incoterms
- · CIF / DAP / EXW options worldwide
- · Optional sample part cut before you commit
