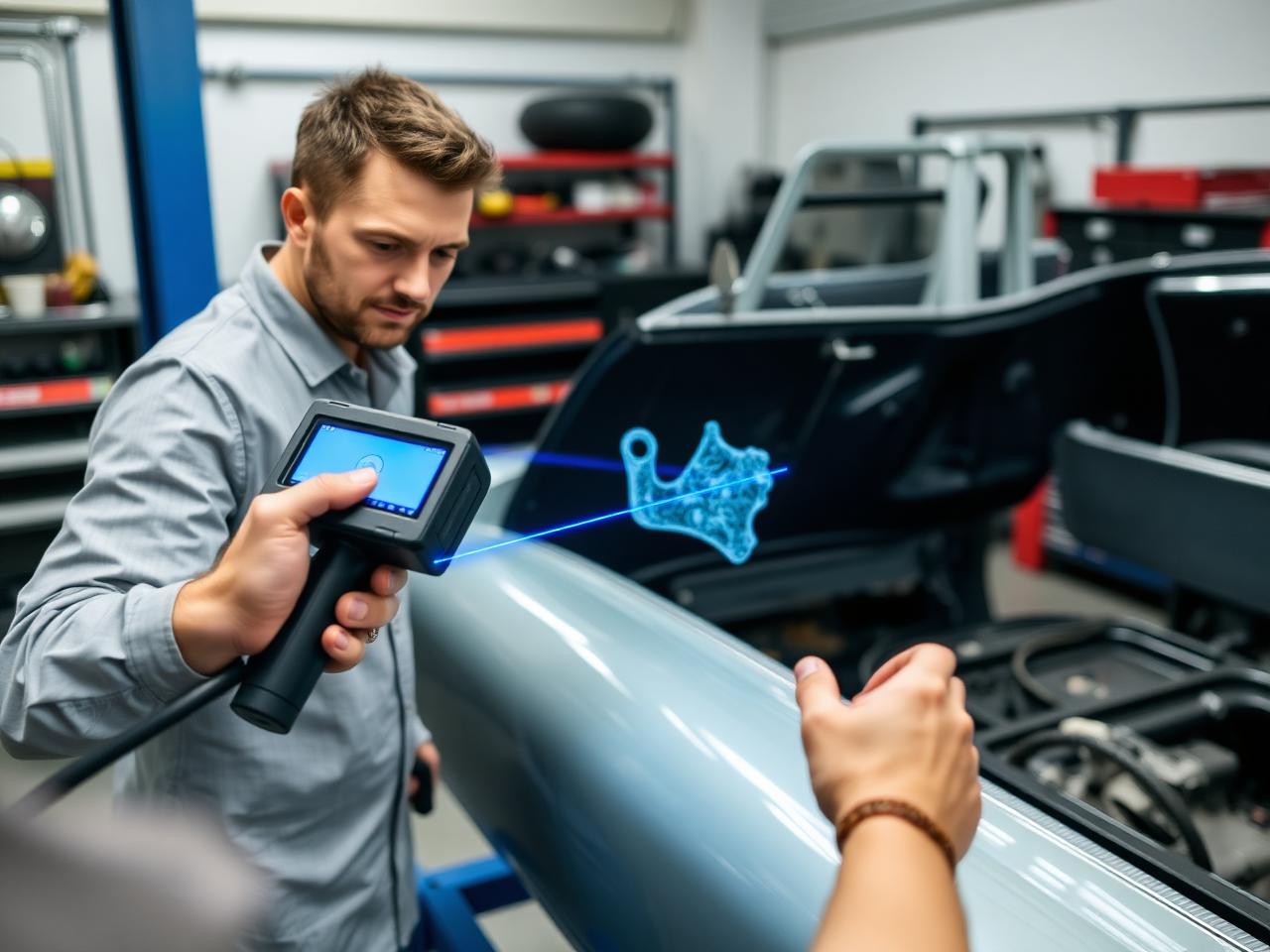

01 · ApplicationAutomotive modification & repair
Reverse-engineer body panels and one-off mods for restoration, tuning and motorsport.
•3D Scanner
Xscanner 3D
Start rapid scan modeling
Portable blue-laser 3D scanner with sub-0.05 mm accuracy — for reverse engineering, QC, medical, cultural heritage and digital twin workflows.
Authorised distributor · Ningbo, China

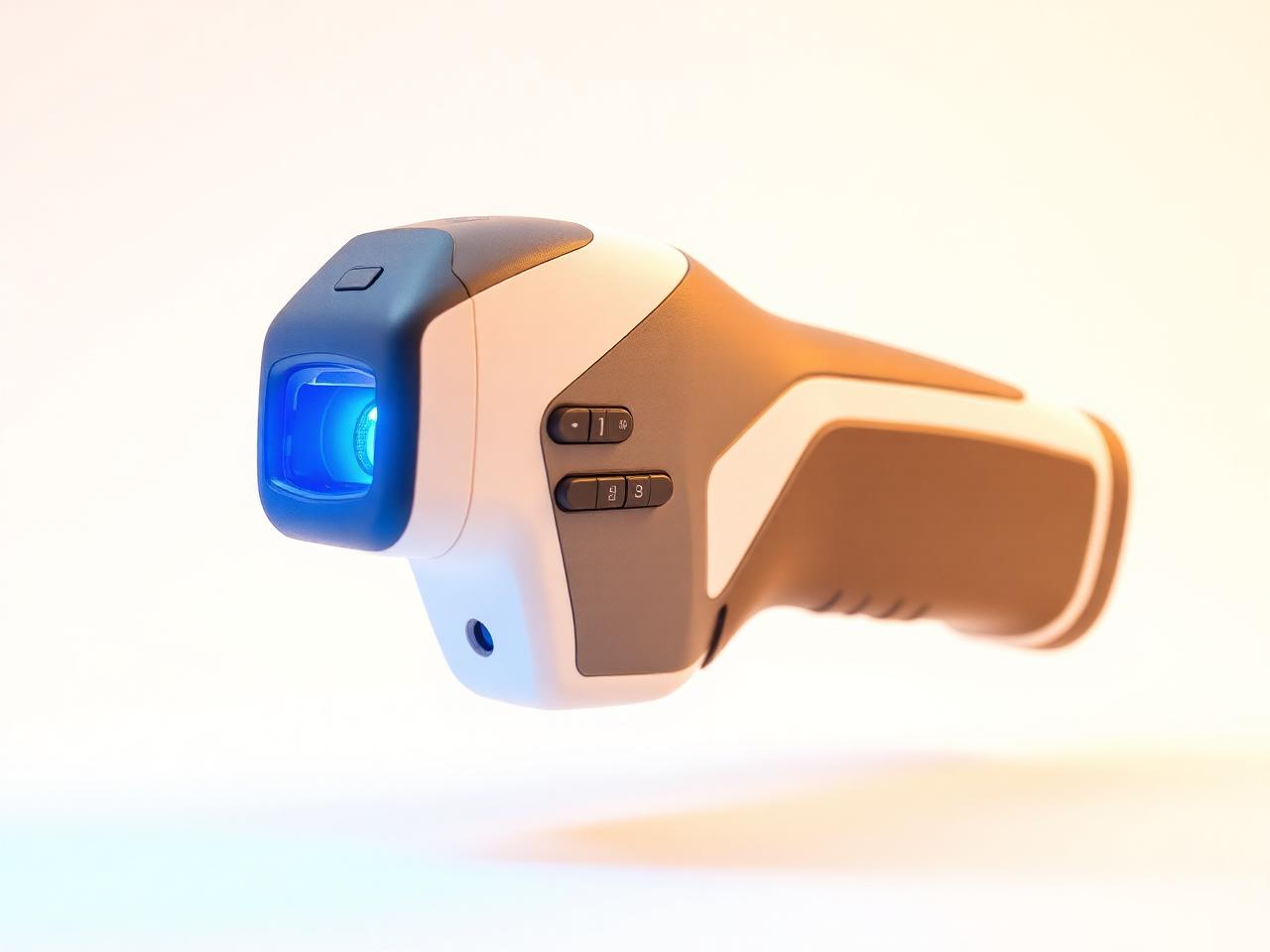

Handheld · ergonomic single-grip01 / 04

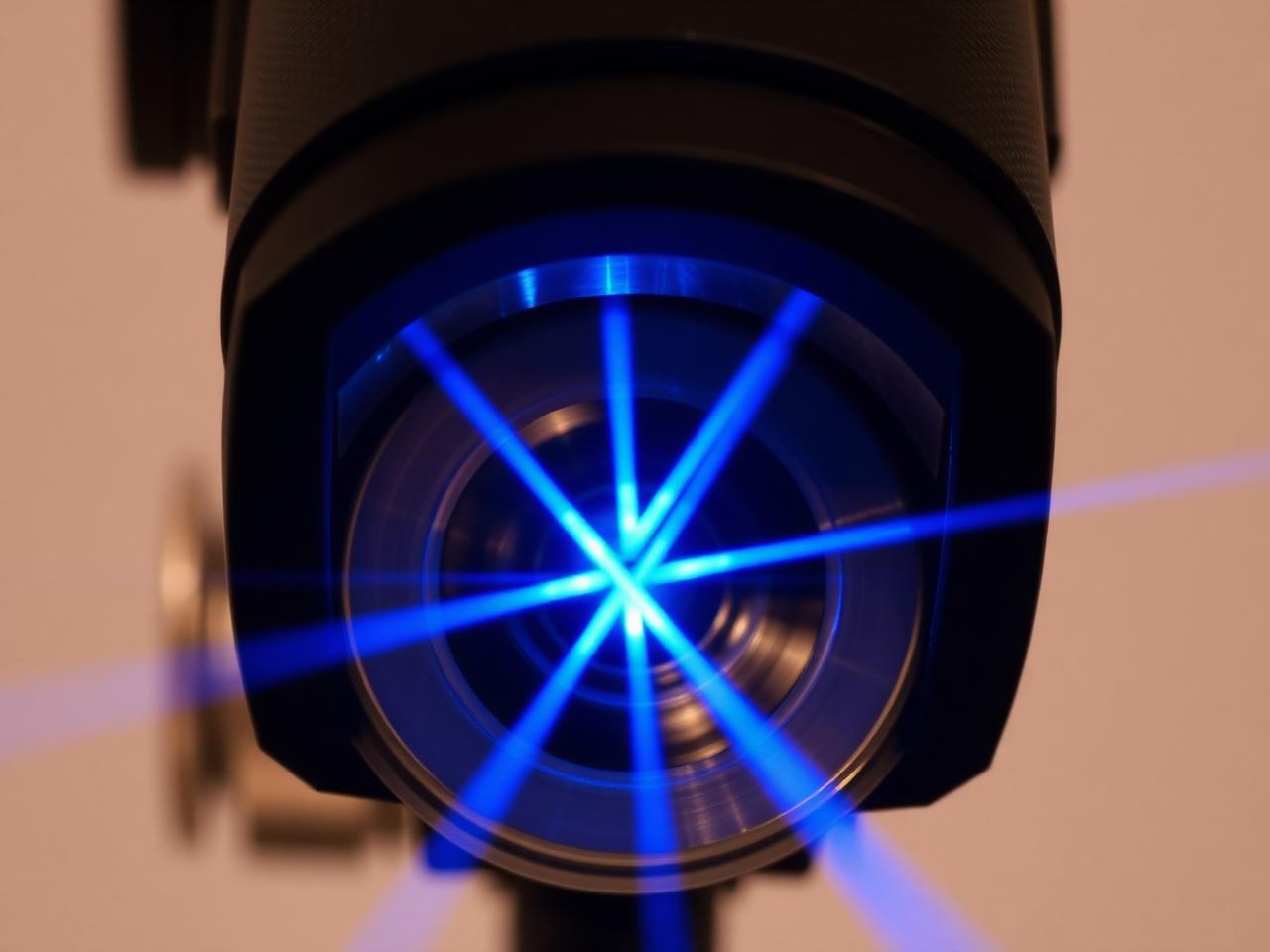

7×2 + 1 · blue laser cross lines01 / 04

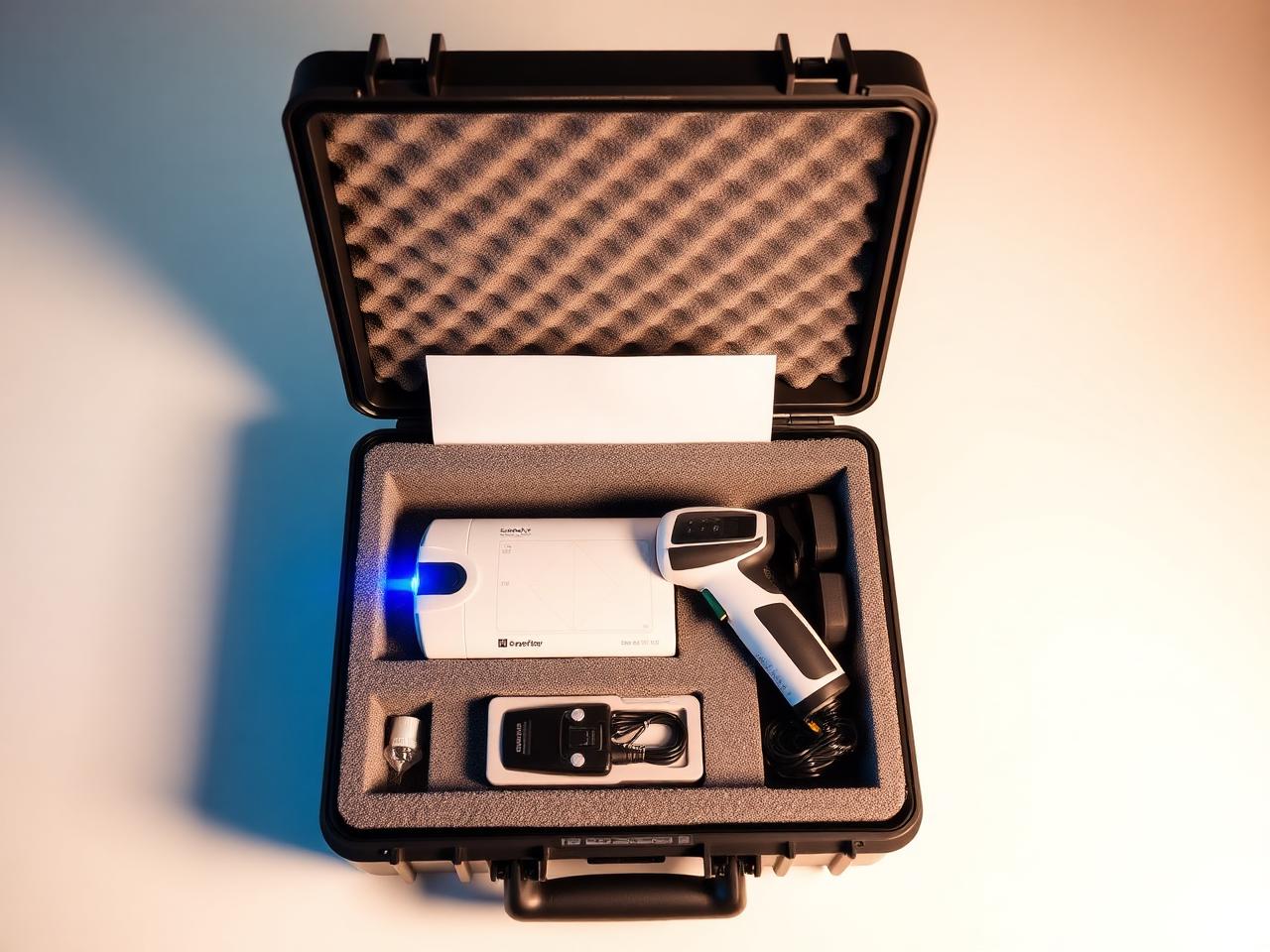

Travel kit · shock-absorbing case01 / 04
Studio · scanning a metal part01 / 04
01A perfect desktop CNC
Professional 3D capture, in one hand.
Blue-laser scanning with the accuracy of a metrology lab and the form factor of a power tool — ready for the shop, the clinic, the studio or the gallery.
02At a glance
0.05 mm
Scan accuracy
0.05 mm
Resolution
420,000 / s
Measurement rate
7×2 + 1
Blue laser lines
400 × 400 mm
Scan area
Class I
Eye-safe laser
425 g
Weight
USB 3.0
Connectivity
03Engineered in detail
Built for the part — not the lab.
01 · Advanced blue laser
7 × 2 hyperfine crosses + 1 deep-hole line.
Ultra-fast mode covers large areas in seconds; deep-hole mode reaches into pockets and bores that other scanners miss.
01 · Feature02 · Ultra-high precision
Up to 0.05 mm accuracy and resolution.
Captures fine geometric detail and surface micro-features on parts of any size, with 20 flash LEDs removing shadows.
02 · Feature03 · Remarkable stabilisation
Marker matching that survives real hands.
Binocular vision and continuous frame processing eliminate mismatches from rapid movement and shaking.
03 · Feature04 · Portable and flexible
425 g. Single-handed. All-day.
239 × 66 × 44 mm, comfortable grip, multifunction buttons and a shock-absorbing case for on-the-go scanning.
04 · Feature04Scanning modes
Two modes for every surface.
Switch from broad ultra-fast capture to deep-hole single-line mode in one button press — no need to put the scanner down.
Ultra-fast modeDeep-hole modeMarker-based trackingMarker-free trackingTexture-friendly captureMulti-scan stitching
05Export formats
Plays nicely with the rest of your pipeline.
Export to the format your CAD, modelling or slicing software already speaks — no proprietary lock-in.
XPRO
PLY
TXT
STL
OFF
OBJ
06Xscanner software
High-efficiency software, made for non-specialists.
Intuitive UI, step-by-step instructions and powerful editing — from raw scan to clean mesh without touching another tool.
Instant preview
Real-time mesh preview while scanning — see gaps and re-cover them on the spot.
Point-cloud editing
Trim, denoise and align scans without leaving the Xscanner workspace.
Mesh processing
Hole filling, smoothing, decimation and remeshing for downstream CAD or 3D printing.
3D stitching
Stitch multiple scans of large objects into one continuous, watertight model.
Intuitive calibration
Step-by-step calibration completes in 1–2 minutes, ensuring consistent accuracy.
Wide compatibility
Export to XPRO, PLY, TXT, STL, OFF and OBJ for any CAD, modelling or slicer software.
07Applications
Where Xscanner 3D ships.
From auto body shops to museums — real captures we've delivered with the Xscanner 3D platform.

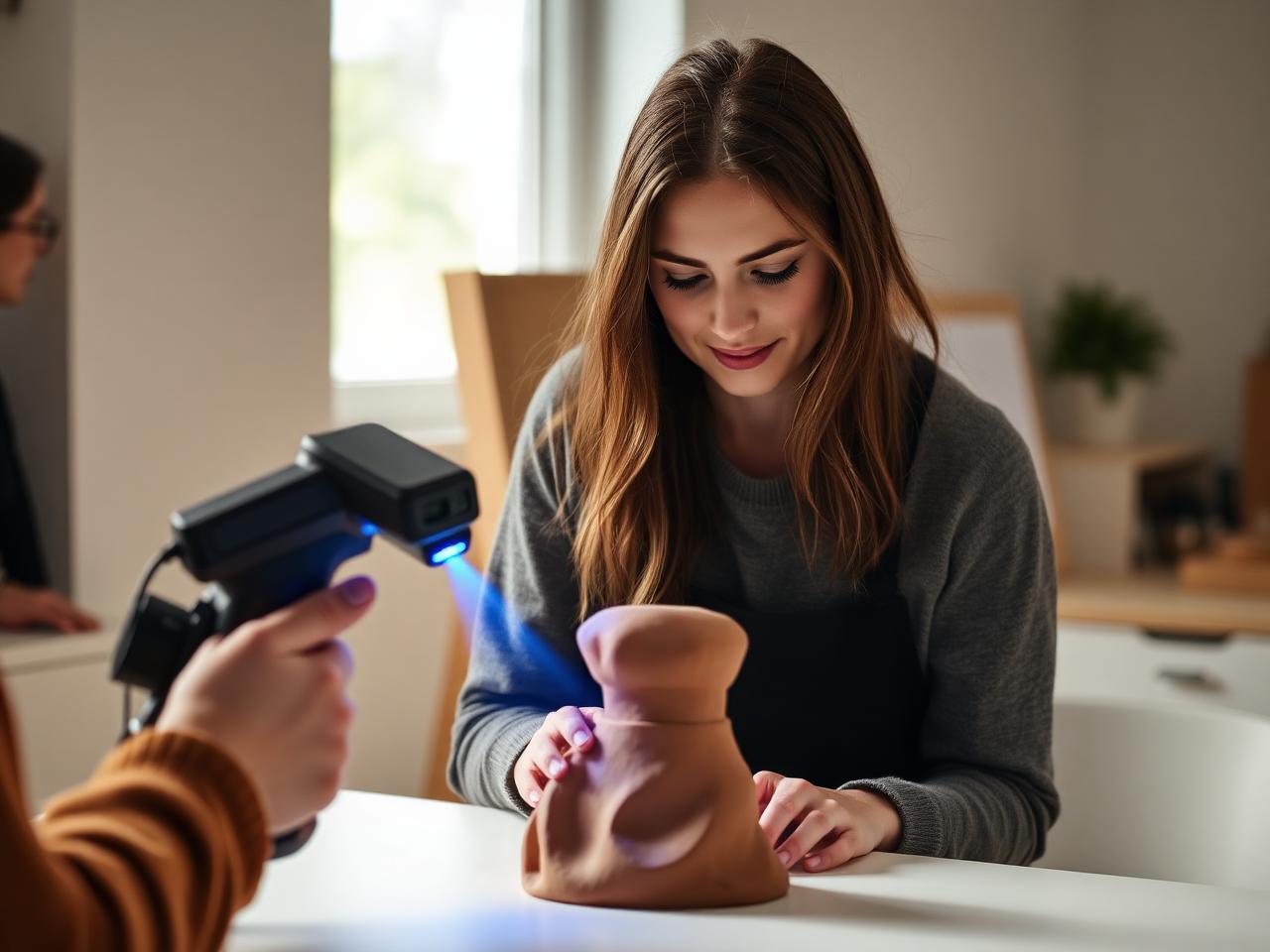

01 · Application02 · ApplicationIndustrial design
Digitise hand-sculpted prototypes and physical references straight into your CAD workflow.

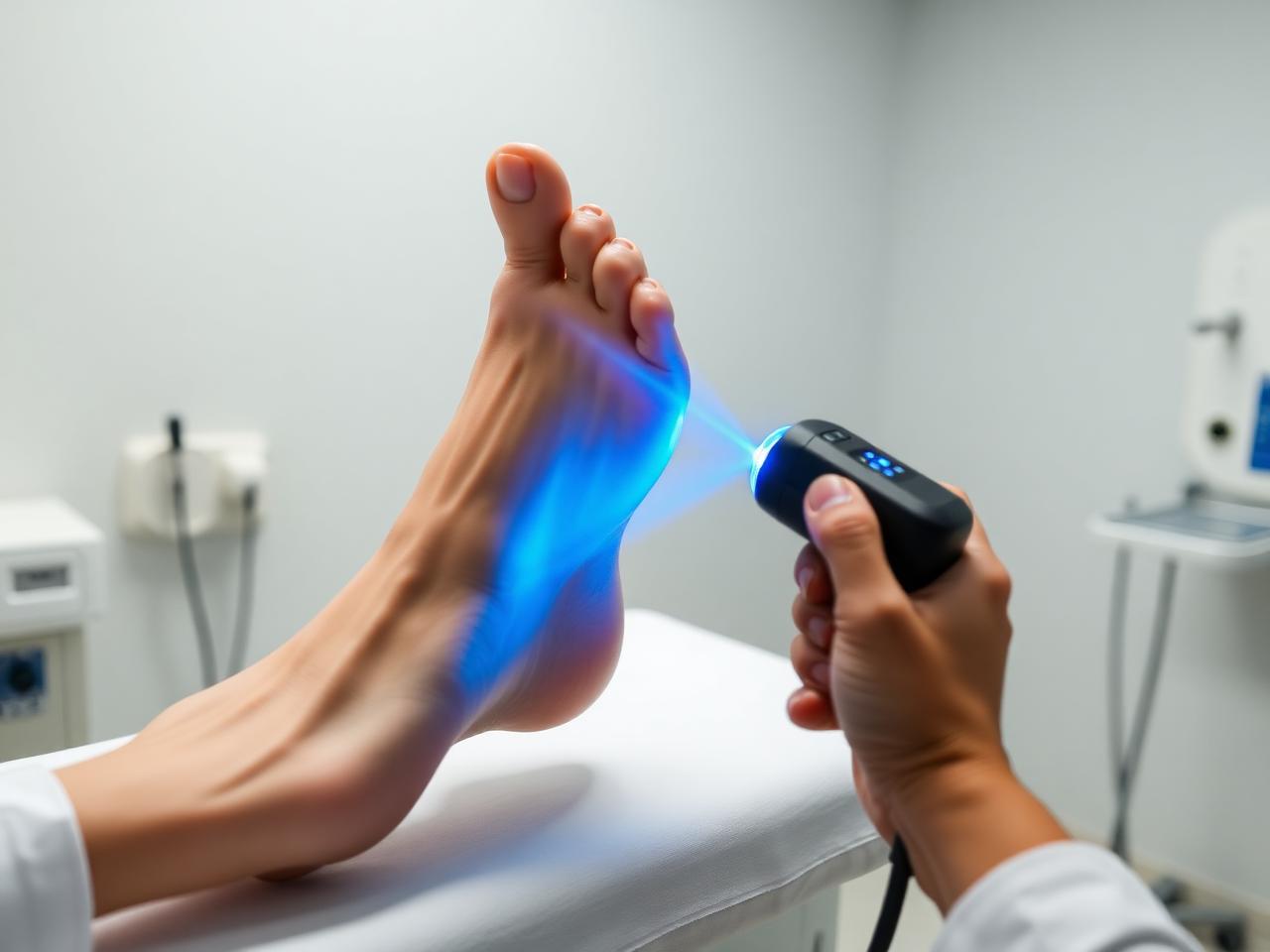

03 · ApplicationMedical & orthotics
Capture limb, foot and dental geometry for custom-fit orthotic and prosthetic devices.

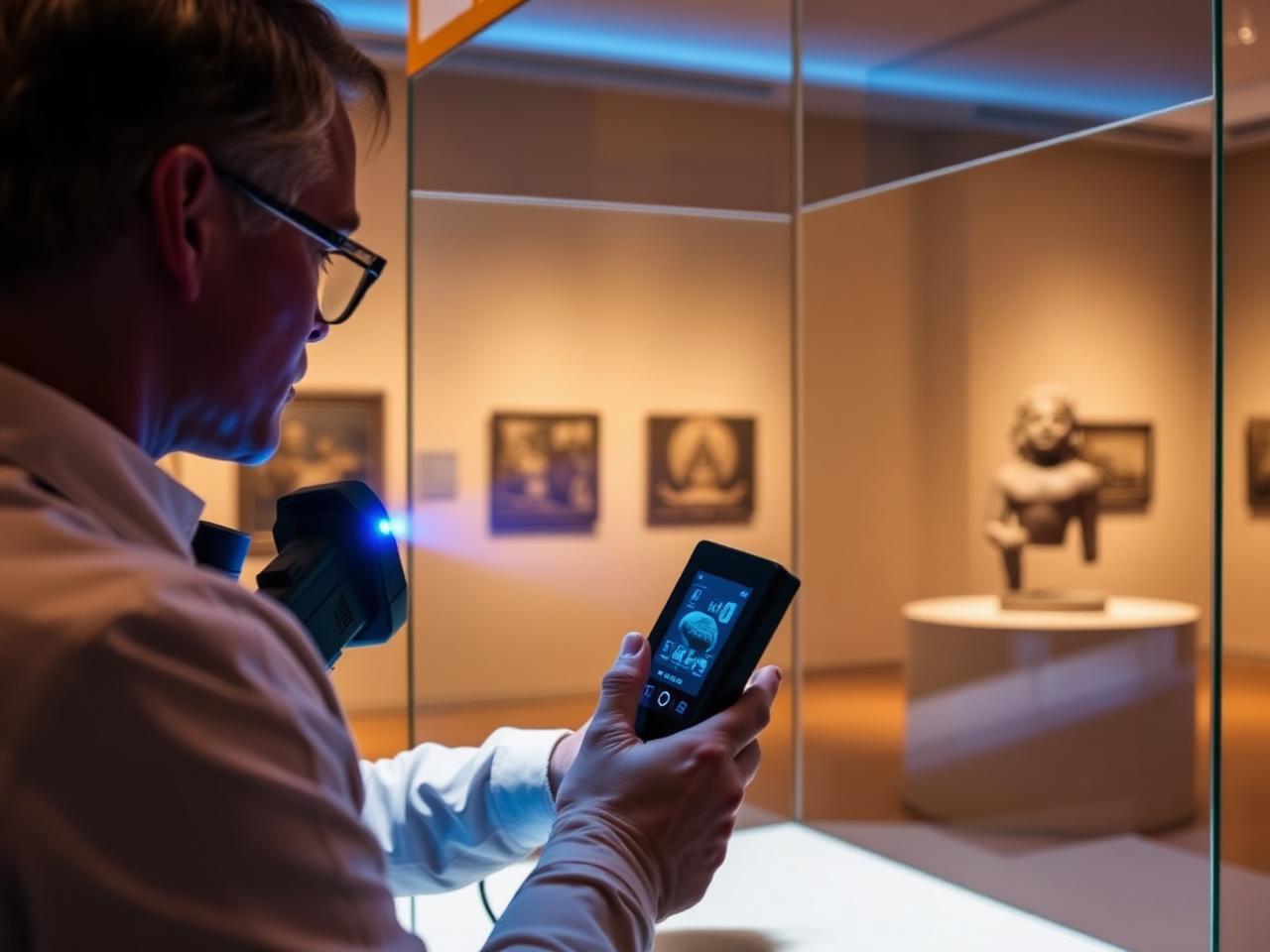

04 · ApplicationCultural heritage
Document sculptures, artifacts and architectural details non-contact for archives and replicas.
08Specifications
Technical data
- Scanning accuracy
- Up to 0.05 mm
- Scanning resolution
- Up to 0.05 mm
- Measurement rate
- Up to 420,000 pts/s
- Laser source
- Blue laser, 7×2 cross lines + 1 deep-hole line
- Laser class
- Class I — eye-safe
- Scanning area
- Up to 400 × 400 mm
- Weight
- 425 g
- Dimensions
- 239 × 66 × 44 mm
- Interface
- USB 3.0 / Type-C
- Export formats
- XPRO · PLY · TXT · STL · OFF · OBJ
Specifications reflect the latest factory release and may be updated without notice. Contact us for the current datasheet.
·Typical applications
Where it fits
- Reverse engineering
- Automotive modification
- Industrial design
- Medical & orthotics
- Cultural heritage
- Education & research
09Why buy through HANCHI
Same machine. Better hands behind it.
As an authorised Xmachine distributor, we pair every Xscanner 3D with local engineering support, faster spares and a real person you can call. Buying from a factory shouldn't feel like buying from a warehouse.
One-to-one engineer
A dedicated application engineer from quote to first cut — in English, Chinese and German.
Pre-shipment QC
Every machine is uncrated, calibrated and test-cut in our Ningbo shop before it leaves.
Spares in 72 h
Stocked consumables and critical spares from Ningbo, Frankfurt and Los Angeles hubs.
Onboarding & CAM help
Free remote operator training, post-processor setup and first-part program review.
10Request a quote
Get pricing, lead time and a sample-part plan for the Xscanner 3D.
Tell us about the part you want to make. We'll come back within one business day with a configured quotation, indicative lead time and — if useful — a short proposal for a sample cut.
- · Distributor pricing with transparent Incoterms
- · CIF / DAP / EXW options worldwide
- · Optional sample part cut before you commit
